Javascript Execution Analysis (in real-time)

Monitoring & Analytics

Asynchronous Calls insights (on Detailed Execution portlet)

Monitoring & Analytics

no alert sent during Maintenance Window

Automation

Nextgen (3)

Maintenance

JS script (remote config & auto-push)

Maintenance

Other enhancements & bug (July)

Maintenance

Monitoring & Analytics - Javascript Execution Analysis (in real-time)

Description

Real-time performance monitoring and analysis of Javascript function, down to the line of code, for any web application. That feature completes the end-to-end time breakdown of a user click (>java script>network request>web request>application code>database sql,…levels and any integration layers) Metrics provided: any metric that Google Chrome provides, including:
  • Javascript method execution time
  • Javascript line (of code) execution time
  • Stall duration
  • Download duration
  • Wait duration
  • etc
Supported Technologies:
  • AngularJS
  • ReactJS
  • VueJS
  • Javascript
Reminder: that end-to-end analysis of a user click or transaction, is configurable by you, so you can further define data relationship and can include any data sources (e.g. integration layer) into the mix.

Configure

GermainUX-JS Profiler

Try It (15-day free trial)

https://germainux.com/cloud-signup/

Examples

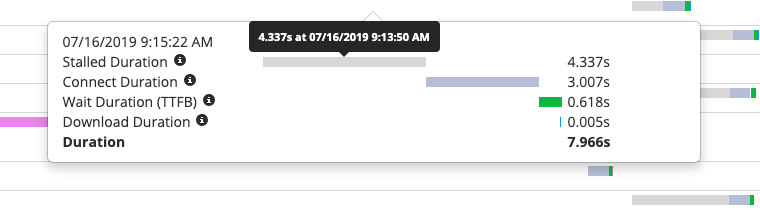

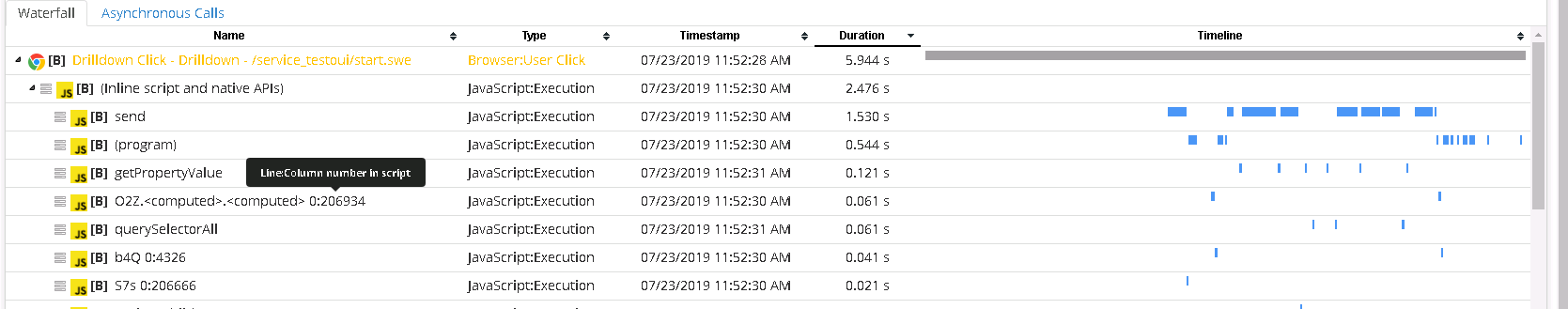

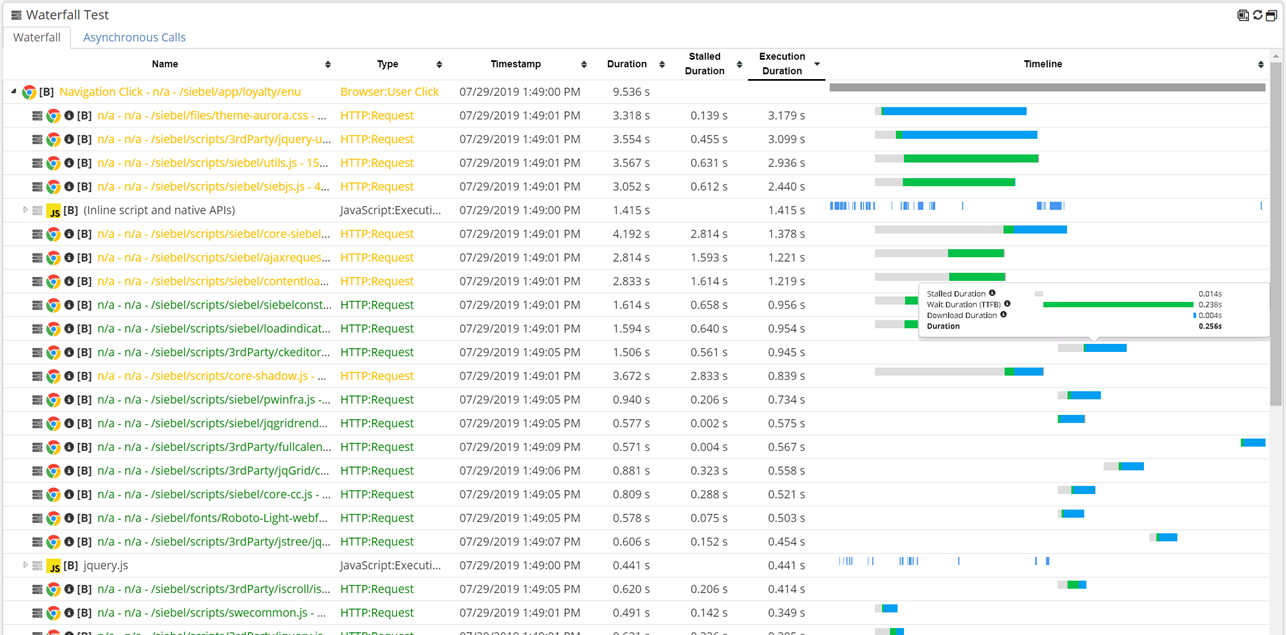

a better view of a java script execution time breakdown and some insights on whether this is stall, connection, wait, download ,etc and for a User Click RCA, that s how it looks:

Monitoring & Analytics - Asynchronous Calls insights (on Detailed Execution portlet)

Description

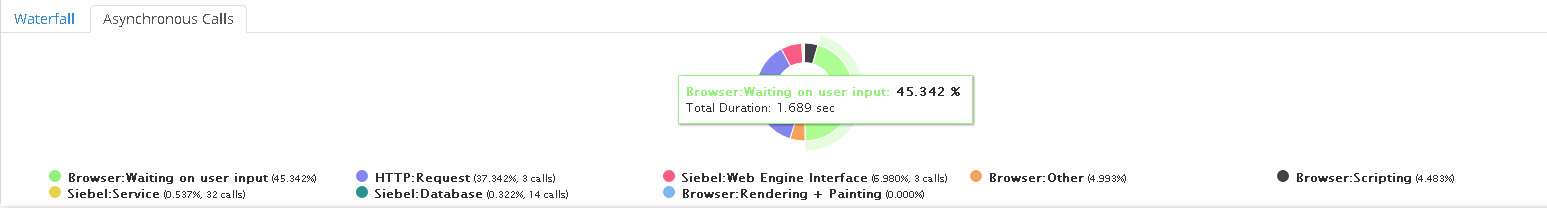

Added a pie that reports on the cumulative time and calls any asynchronous methods (browser script, application code, database sql) for a transaction or a user click ie. sum up of any data that is reported on the Detailed Execution flow portlet.

Benefit

That provides insights on the processing time and calls triggered by a user click, irrespective of the user experience. Useful when you are trying to reduce infrastructure load and cost. Reminder: this applies to any technology that is monitored by Germain, most of which are listed here: https://germainux.com/plugins

Automation - no alert sent during Maintenance Window

Description

No email alert is sent by Germain if a Maintenance Window is setup

Configuration

this is how to setup a maintenance window: Maintenance Period

Maintenance - Nextgen (3)

Third month working on our nextGen project…stay tuned.

Maintenance - JS script (remote config & auto-push)

Description

Germain JS script can now be remotely configured without needing access to the actual JS file. In addition, a new mechanism has been built to enforce that every end-user’s browser (of a business application that is monitored by Germain and this JS script) automatically uses the latest version of the JS script that is available, making any new features active right away. (Note that there is now only one single JS script in lieu of 2).

Maintenance - Other enhancements & bug (July)
