Overview

Deploy GermainUX monitoring for Magento to capture real user experience, conversion journeys, application performance, errors, and the health of the systems supporting your Magento store.

Monitoring Options

GermainUX can monitor Magento across multiple layers:

Magento Layer	GermainUX Monitoring
Browser / User Interface	Real User Monitoring, Session Replay, user behavior, errors, performance, and conversion journeys via GermainUX RUM JS
JavaScript	JavaScript performance and code-level analysis via GermainUX JS Profiler
Synthetic User Journeys	Proactive testing of critical journeys such as product search, cart, and checkout via GermainUX RPA
REST APIs	Availability, performance, usage, and errors via GermainUX Engine
Logs	Errors, warnings, application activity, and other relevant events via GermainUX Engine
Database	Database availability, performance, and other relevant telemetry via GermainUX Engine

Deploy only the monitoring capabilities required for your environment and use case.

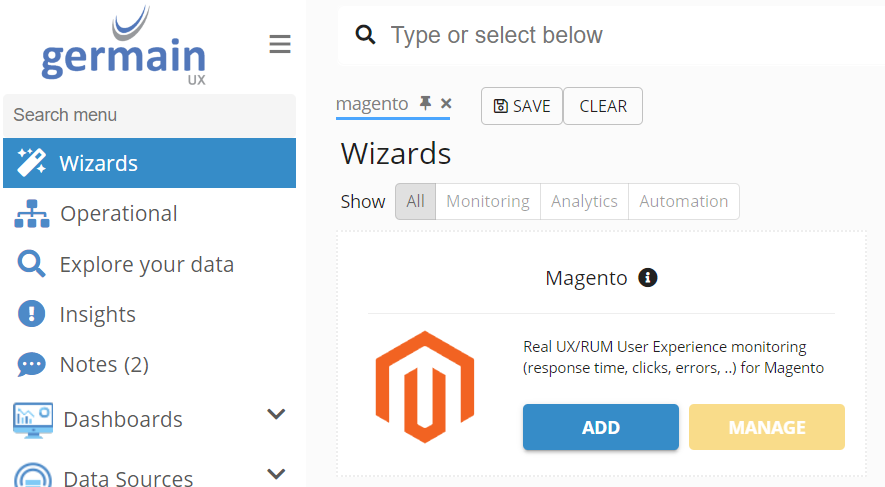

1. Start the Magento Wizard

From Germain Workspace, navigate to: Left Menu → Settings -> Wizards → Magento

The Magento Wizard guides you through the initial configuration of Magento monitoring.

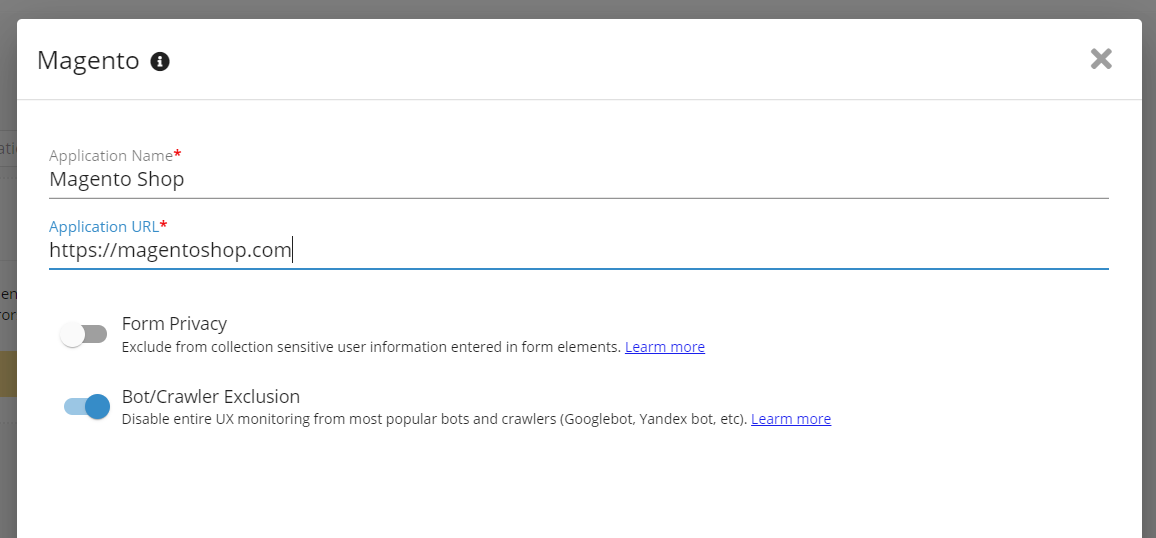

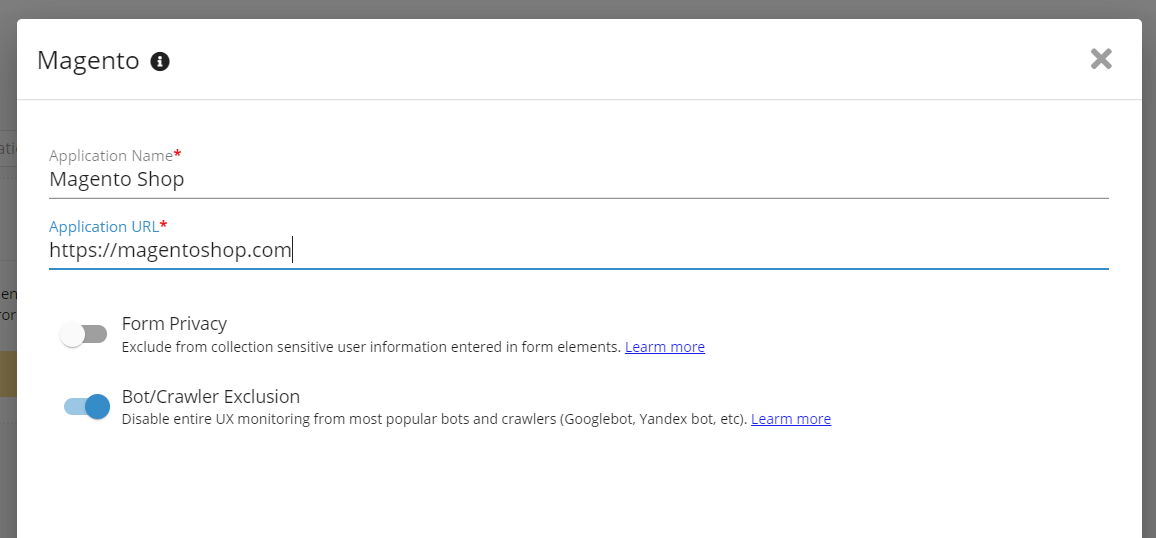

2. Configure the Magento Application

Enter the:

Application Name
Magento URL

The Application Name identifies the Magento environment throughout GermainUX analytics, dashboards, reports, alerts, and Session Replay. Use the URL of the Magento environment that you want GermainUX to monitor.

3. Follow the Deployment Instructions

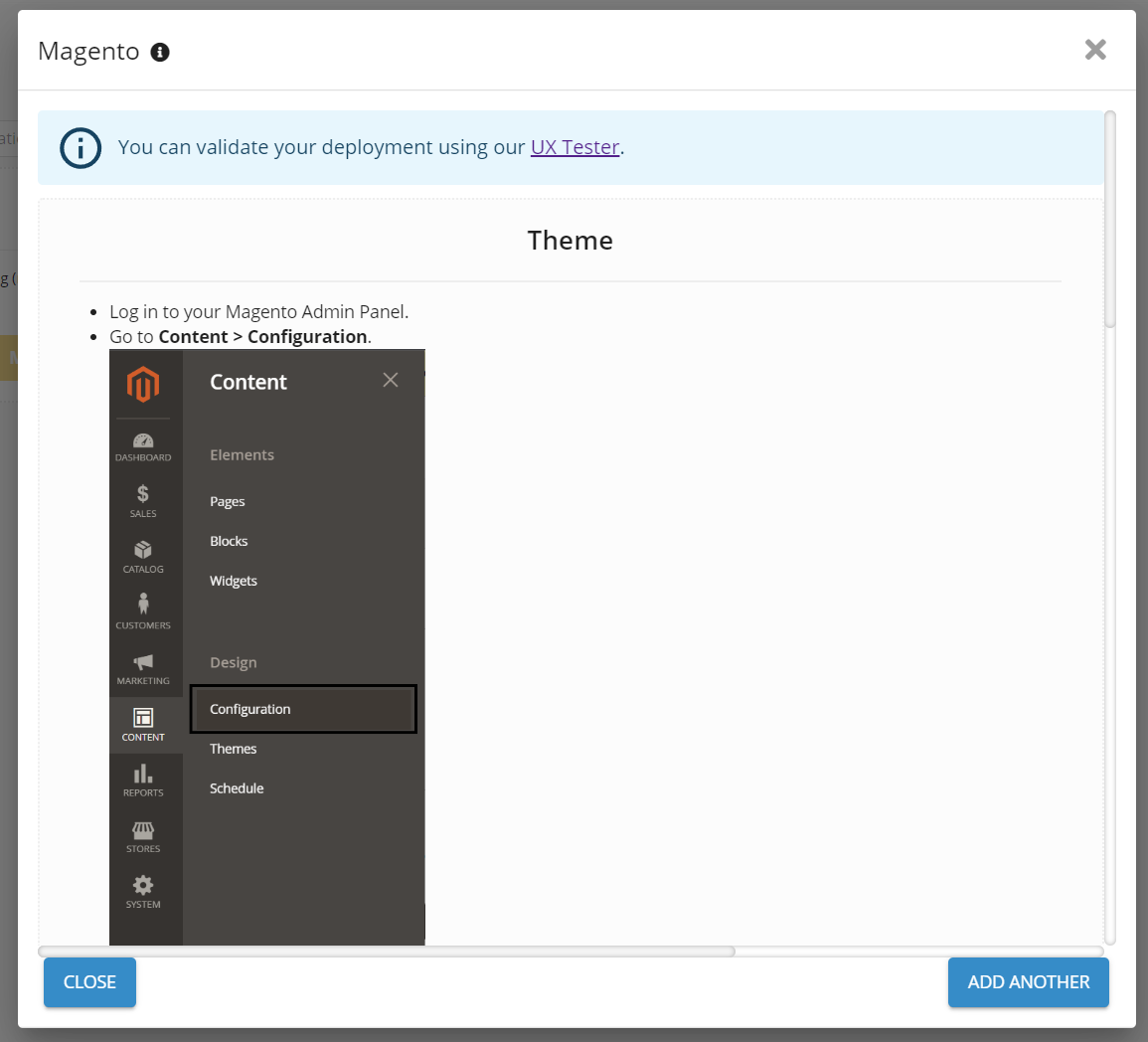

Once the initial configuration is complete, the Magento Wizard generates the deployment instructions for your environment. Follow the instructions provided in the Wizard to deploy the selected GermainUX monitoring components. For browser-based Real User Monitoring, this includes deploying GermainUX RUM JS to the Magento storefront. Once deployed, GermainUX can begin capturing actual visitor activity, including:

Page navigation
User actions and clicks
Form interactions
Session Replay
Browser and JavaScript errors
Network requests
Page and transaction performance
Customer journeys and business activity

The monitoring scope can then be customized according to your requirements.

4. Validate Real User Monitoring & Session Replay

Open the monitored Magento store and perform a representative customer journey, for example:

Product SearchProduct ViewAdd to CartCheckout

Verify in GermainUX that:

The user session is captured
Pages and user actions are visible
Session Replay is available
Browser errors are captured
Network requests are monitored
Performance telemetry is available
The session is associated with the correct Magento application

This confirms that browser-side Magento monitoring is operating correctly.

5. Configure Error Monitoring

GermainUX RUM JS automatically captures browser-side errors and failed network requests affecting Magento visitors. The UX Monitoring Profile can be customized when additional error detection, classification, or exclusions are required. Navigate to: Germain Workspace → Left Menu → Settings → Analytics → UX Monitoring Profiles → [Magento Application] From the monitoring profile, you can customize how events are captured and processed for your Magento environment. For example, you can:

Classify specific network failures as business-relevant errors
Customize error names and categories

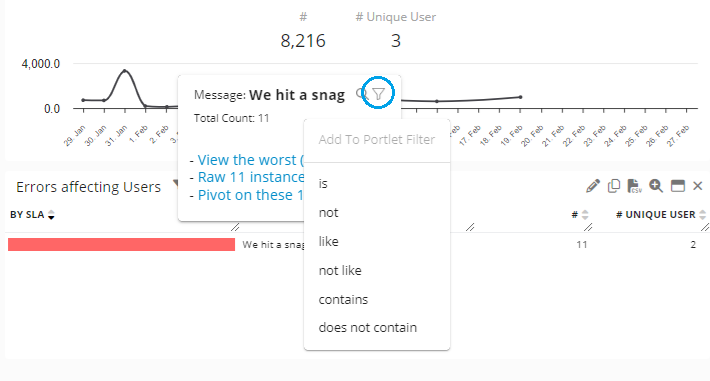

Exclude known or benign errors from the configuration or from the Analytics dashboard like this:

Filter in or out specific Magento errors - GermainUX

Identify customer-impacting errors
Add application-specific context to monitored events

Once error monitoring is active, GermainUX Categorization, dashboards, alerts, and reports can be configured to automatically identify and prioritize new or important errors. Sample Code:

var settings = germainApm.getDefaultSettings(loaderArgs, agentConfig);
settings.plugins.feedback.enabled = false;
//settings.constants.logLevel = 'TRACE';
settings.constants.logLevelToEmitAsFacts = 'WARN';
settings.application.metadataProviders['user.name'] = function (window) {
    return new germainApm.native.Promise(function (resolve) {
        germainApm.utils.waitForElements(window, '.user-info .d-flex', function (elements) {
            var el = elements[0];
            if (el && el.innerText) {
                resolve(el.innerText.replace(/\s\s+/g, ' '));
            }
            else {
                resolve(undefined);
            }
        }, undefined, 10, 1000);
    });
};
settings.plugins.pageLoad.factProcessor = function (userClick, events) {
    for (var i = 0; i < events.length; i++) {
        if (events[i].event.type === 'document ready') {
            var page = events[i].page;
            if (page && page.title)
                userClick.name = 'Navigation ' + page.title;
        }
    }
};
settings.plugins.network.eventProcessor = function (event) {
    var response = event.response;
    try {
        if (event.status === 0 || event.status >= 400) {
            if (event.url && event.url.pathname) {
                var pathname_1 = event.url.pathname;
                if (pathname_1 && pathname_1 !== '/v1/events' && pathname_1 !== '/server/cometd') {
                    if (pathname_1.match('/genesys/2/chat/GWE.*/refresh')) {
                        event.businessObject = 'Chat Refresh Error';
                    }
                    else if (~pathname_1.indexOf('/api/contract/getProductOffer')) {
                        event.businessObject = 'Product Offer Error';
                    }
                    else if (pathname_1.match('/api/contract/subscriptions/.*/verify-otp') ||
                        ~pathname_1.indexOf('/api/contract/findSubscriptionInfobySubscriptionNumber') ||
                        ~pathname_1.indexOf('/api/contract/findSubscriptionsInfo') ||
                        ~pathname_1.indexOf('/api/logistical/generate_bon_transport_byClaimNumber/SV') ||
                        ~pathname_1.indexOf('/api/logistical/generate_bon_transport/CRDN/FIND') ||
                        ~pathname_1.indexOf('/api/logistical/generate_bon_transport/TS/FIND') ||
                        ~pathname_1.indexOf('/api/contact/createContact') ||
                        ~pathname_1.indexOf('/api/claims/getclaimbyNumber')) {
                        event.businessObject = 'Error';
                        if (response) {
                            try {
                                var object = JSON.parse(response);
                                if (object) {
                                    if (object.type)
                                        event.businessObject = object.type;
                                    if (object.message)
                                        event.businessObject = event.businessObject + ":" + object.message;
                                    if (event.businessObject)
                                        event.businessObject = event.businessObject.substring(0, 50).trim();
                                }
                            }
                            catch (e) { }
                        }
                    }
                }
            }
        }
    }
    catch (e) { }
};
settings.plugins.pageLoad.factProcessor = function (userClick, events) {
    for (var i = 0; i < events.length; i++) {
        var event_1 = events[i].event;
        if (event_1.type === 'request') {
            if (event_1.success !== undefined)
                userClick.success = event_1.success;
        }
    }
};
settings.plugins.click.factProcessor = function (fact, event, fireEvent, settings) {
    try {
        var target = event.target;
        if (target instanceof HTMLElement) {
            if (fact.displayedName === 'Résilier mon assurance' || fact.displayedName === 'Déclarer un sinistre' || fact.displayedName === 'Suivre mes sinistres') {
                var container_1 = target.closest('.contract-info-row');
                if (container_1) {
                    var adhesionContainer = container_1.querySelector('p.text-gray');
                    if (adhesionContainer) {
                        var content = adhesionContainer.innerText;
                        if (content && ~content.indexOf("Numéro d'adhésion")) {
                            // set n. adhesion
                            fact.businessObject = content.replace("Numéro d'adhésion :", '').trim();
                        }
                    }
                }
            }
            // extract username
            var container = document.querySelector('.user-info .d-flex');
            if (container) {
                var content = container.innerText;
                if (content) {
                    content = content.replace(/\s\s+/g, ' ');
                    germainApm.rootWindow && germainApm.rootWindow.submitData({ time: Date.now(), type: 'assign metadata', fieldPath: 'user.name', value: content });
                }
            }
        }
    }
    catch (e) { }
};
germainApm.eventGenerators.customAlert = {
    emits: ['DOM popup opening', 'DOM popup closed'],
    installer: function () { return function () { }; },
};
germainApm.eventGenerators.customLogout = {
    emits: ['session end'],
    installer: function () { return function () { }; },
};
germainApm.start(settings);

6. Enable Advanced JavaScript Analysis — Optional

For deeper troubleshooting of browser-side performance issues, deploy the GermainUX JS Profiler. The JS Profiler provides more detailed JavaScript execution analysis and can help identify expensive JavaScript methods, execution delays, stalls, and other browser-side performance issues. Use this capability when deeper JavaScript diagnostics are required beyond standard RUM monitoring.

7. Configure Synthetic Monitoring — Optional

GermainUX RPA can be used to proactively test critical Magento journeys without waiting for an actual visitor to encounter an issue. For example:

Open StoreSearch ProductAdd to CartCheckout

Synthetic journeys can be scheduled to continuously validate critical functionality and detect issues such as:

Storefront unavailable
Product search failure
Add-to-cart failure
Checkout failure
Slow transactions
Integration failures

Alerts or automated actions can be triggered when a synthetic journey fails or exceeds defined thresholds.

8. Configure Backend Monitoring — Optional

Use the GermainUX Engine when additional monitoring is required beyond the browser. Depending on your Magento architecture, GermainUX can monitor:

REST APIs

Monitor the availability, performance, usage, and errors of Magento APIs and related services.

Logs

Monitor Magento and supporting application logs to detect errors, warnings, and other events relevant to application health.

Database

Monitor the database supporting Magento to identify availability or performance conditions affecting the customer experience. Combining browser and backend monitoring provides broader visibility across:

VisitorMagento StorefrontAPI / ServiceDatabase

9. Review Data Privacy

Before enabling production monitoring, review the data collected from your Magento environment. GermainUX monitoring can be configured to exclude or anonymize sensitive information. Pay particular attention to customer and payment-related information during:

Account creation and login
Customer profile management
Cart
Checkout
Payment
Order confirmation

Configure appropriate exclusions before enabling monitoring for production users.

10. Validate the Deployment

After deployment, verify that the required Magento telemetry is being received by GermainUX. Depending on the monitoring capabilities enabled, validate:

Real user sessions
Session Replay
User actions and customer journeys
Browser and JavaScript errors
Network requests
Performance telemetry

Show all 10

Synthetic transactions
API monitoring
Log monitoring
Database monitoring

Also confirm that sensitive information is excluded or anonymized according to your organization’s privacy and security requirements.

Return to the Deployment Instructions

You can return to the generated RUM JS deployment instructions at any time. Navigate to:

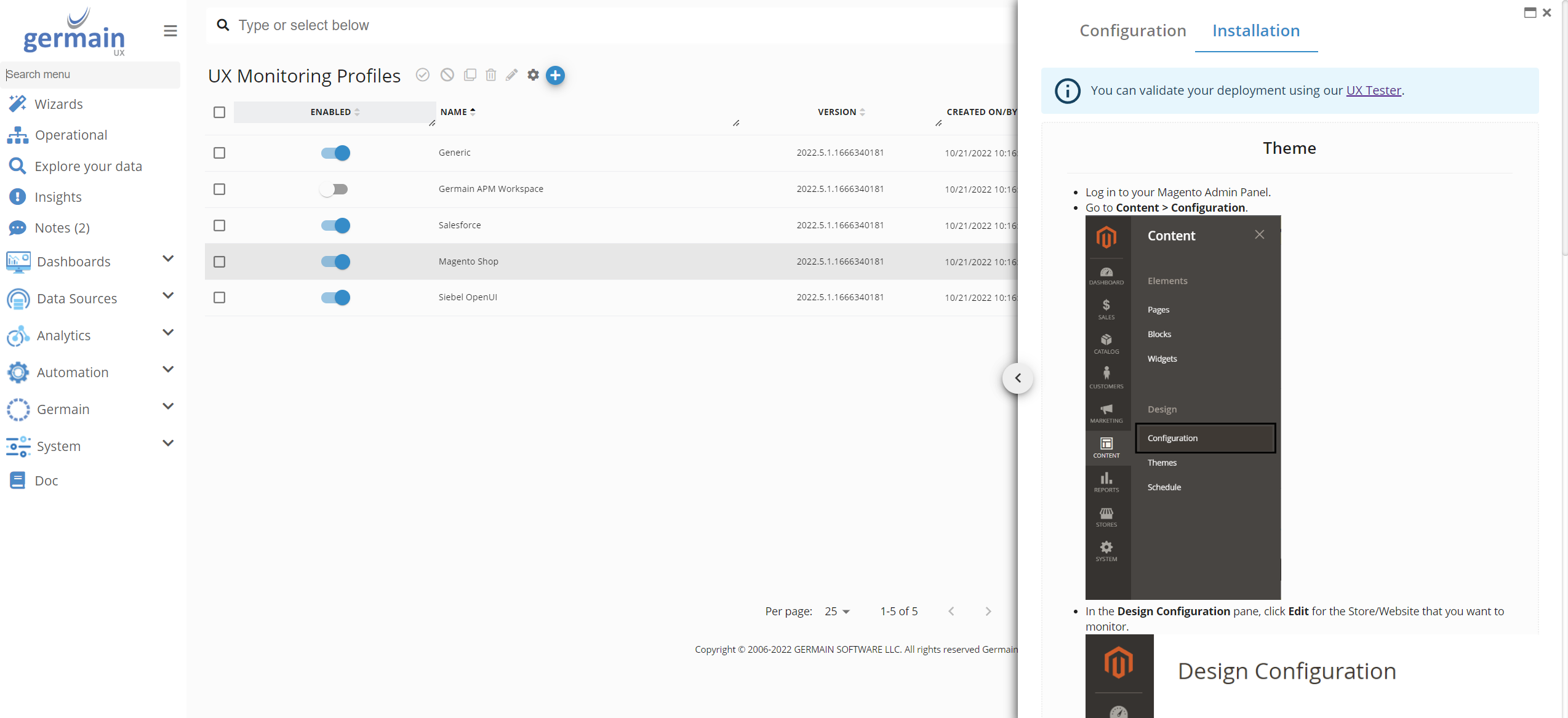

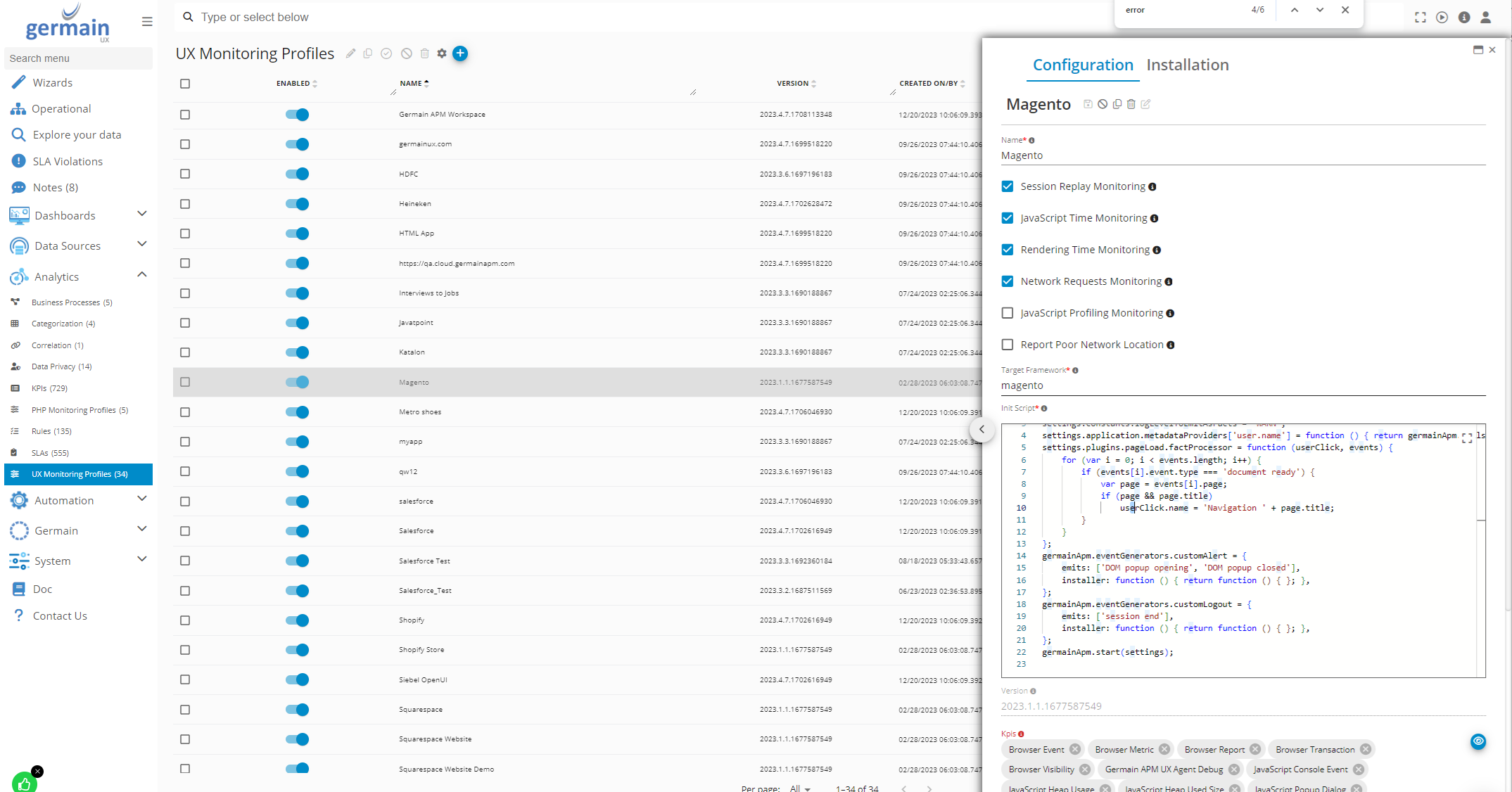

Germain WorkspaceSettingsAnalyticsUX Monitoring Profiles

Select the Magento monitoring profile and open Installation in the Configuration Editor. The installation instructions for that monitoring profile will be displayed.

Next Steps

Once Magento monitoring is deployed, configure the analytics and automation appropriate for your use case. For example:

Conversion and funnel dashboards
Cart abandonment analysis
Checkout monitoring
Customer journey analysis
AI-powered session insights
Customer feedback analysis

Show all 11

Error and performance monitoring
Real-time alerts
Automated reports
SLA monitoring
Operational automation

See Magento Operational Experience Intelligence for details about the Magento monitoring and analytics capabilities available in GermainUX.

Get Help

Contact GermainUX Support

The Germain Team can help you set this up.

Can't find what you need?

Search all GermainUX docs with Ctrl + K, or use the feedback buttons at the bottom of this page to tell us what is missing.
