Monitoring & Analytics - Time Breakdown for Transaction
Customer(s)
American Airlines, Anz Bank, GE Healthcare, Pepsi, True Telecom, Volvo
Description
Enhancement 1: More granular time breakdown for a transaction so that now, the infra/server-side time is broken down by layers e.g. for siebel, time is broken down by [browser/scripting - browser/html rendering - browser/user input - infra/siebel object manager - infra/database - network]
Labels of this time breakdown are customizable.
Enhancement2: introducing the notion of Exclusive (critical path-related time for a transaction to complete) and Cumulative (asynchronous transaction time summed up to help you understand how much processing is being performed irrespective of when a transaction completes its critical purpose)

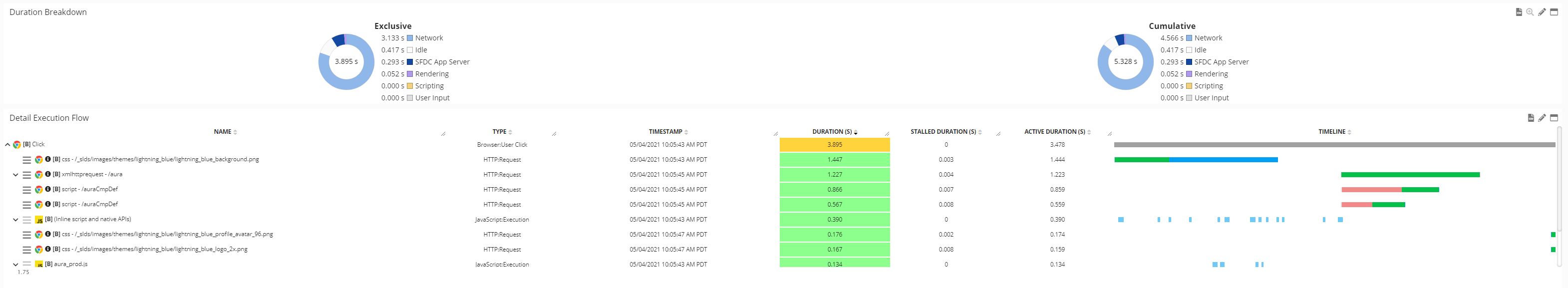

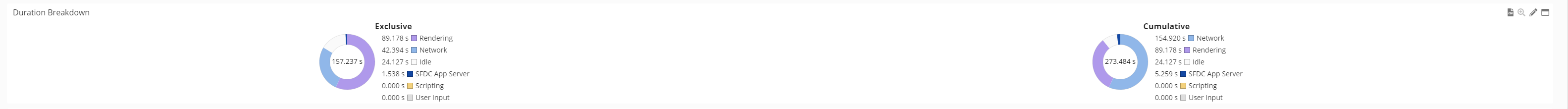

e.g. for SalesForce.com
![](../__attachments/3681670548/image-20210506-124841.png?inst-v=baad7441-1094-48da-b263-fa99f8ae5725)
![](../__attachments/3681670548/image-20210506-124912.png?inst-v=baad7441-1094-48da-b263-fa99f8ae5725)

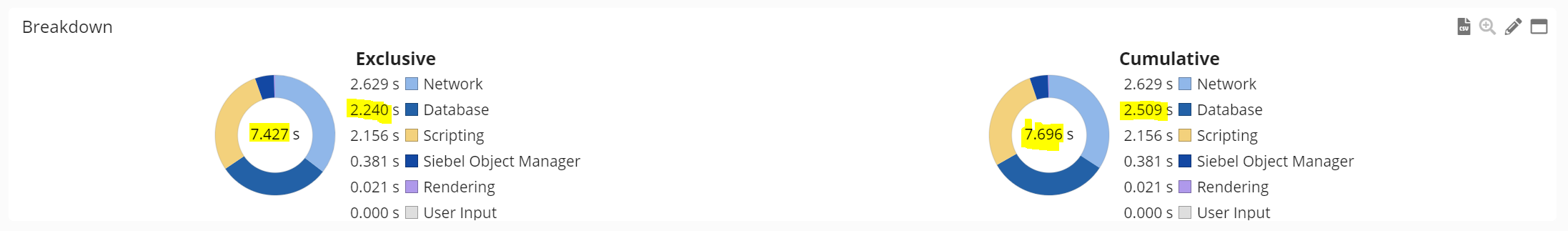

e.g. for Oracle Siebel CRM
![](../__attachments/3681670548/image-20210505-142756.png?inst-v=baad7441-1094-48da-b263-fa99f8ae5725)

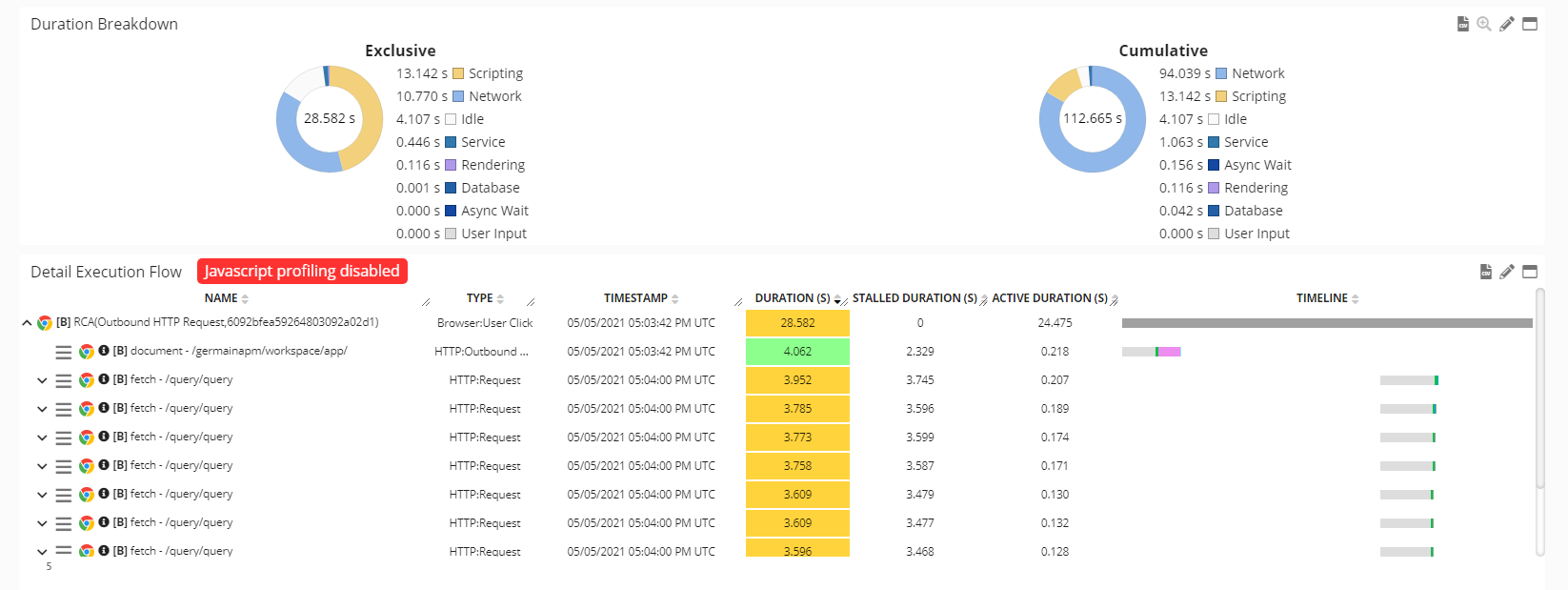

e.g. For a React/Java app:
![](../__attachments/3681670548/image-20210505-172818.png?inst-v=baad7441-1094-48da-b263-fa99f8ae5725)
