Kubernetes Setup This guide explains how to deploy a small GermainUX environment on an existing Kubernetes cluster.

Testing environments onlyThe configuration provided with the Kubernetes distribution is intended for development, evaluation, and testing. It is not a production reference architecture. Production deployments require environment-specific sizing, persistent storage, security, availability, backup, monitoring, and disaster-recovery planning.

Architecture

The deployment package generates Kubernetes manifests for three groups of resources:

Resource group	Purpose
`configmap`	GermainUX and infrastructure configuration
`infra`	Required infrastructure services and datastores
`germain`	Germain Enterprise and related GermainUX services

Apply these groups in that order because GermainUX depends on the configuration and infrastructure resources.

Requirements

Kubernetes cluster

You need:

A functioning Kubernetes cluster
Administrative or appropriately scoped cluster permissions
kubectl configured for the target cluster
A default or explicitly configured StorageClass
A container registry accessible from every cluster node
Network connectivity between all required GermainUX components
External access through an Ingress, LoadBalancer, or another approved method

Example lab capacity

The original test environment used the following cluster settings:

Resource	Example value
Minimum node-group size	8
Maximum node-group size	16
Desired node-group size	8
Node volume type	GP3
Minimum CPU	2 cores
Minimum memory	4 GB
Minimum disk	20 GB

These values reflect a sample lab environment, not guaranteed requirements. Confirm whether CPU, memory, and disk values apply per node in your Kubernetes platform and resize the cluster according to the number of deployed components and expected data volume. For production sizing, account for:

Number of monitored users and applications
Incoming telemetry volume
Retention period
Elasticsearch indexing and query workload
Kafka throughput and retention
High-availability requirements

Show all 9

JVM heap requirements
Replication and backup overhead
Expected growth

Obtain the deployment package

Download the Kubernetes distribution provided for your licensed GermainUX release:

wget <germainux-kubernetes-package-url>
tar xzf germainux-kubernetes-<version>-binary.tar.gz
cd germainux-kubernetes-<version>

Obtain the current package URL and supported component-version matrix from GermainUX Support. Do not reuse manifests generated by a different GermainUX release without reviewing their compatibility.

Configure the license

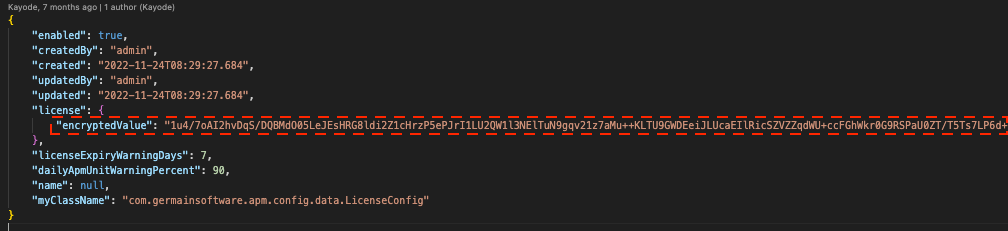

Locate:

<EXTRACTED_FILES>/templates/config/license/
germain.apm.monitoringConfig.systemConfig.license.json

Update the encrypted license value with the license content supplied by Germain Software. Do not:

Commit the license to a public source-code repository.
Include it in an unprotected container image.
Share it in logs or support material.
Store an unencrypted copy in a ConfigMap.

For production deployments, use your organization’s approved Kubernetes secret-management solution whenever the deployment package supports it.

Configure the deployment

Open:

deploy-germain.sh

Update the deployment variables for the target environment. A package may contain variables similar to:

elasticSearchVersion="<approved-version>"
mysqlVersion="<approved-version>"
kibanaVersion="<approved-version>"
zookeeperVersion="<approved-version>"
hazelcastVersion="<approved-version>"
kafkaVersion="<approved-version>"
germainVersion="<germainux-version>"
germainApmBuildRegistry="<registry>"
germainEnvName="<environment-name>"

Use only the infrastructure versions approved for the installed GermainUX release.

Messaging compatibility

GermainUX 2024.2 and later uses Kafka. Apache ActiveMQ applies only to earlier releases. For GermainUX 2024.2 or later:

Configure the approved Kafka version.
Do not deploy ActiveMQ unless specifically required by Germain Support for an upgrade or compatibility scenario.

For an older GermainUX release, follow that release’s ActiveMQ requirements.

Environment name

Set a unique, descriptive environment name:

germainEnvName="germain-qa"

Use different names for development, QA, staging, and production environments. The name may be used to generate directories, resource names, configuration roots, or namespaces. Avoid changing it after the deployment has been initialized unless you intend to create a separate environment.

Configure the database

The deployment can use its packaged database resources or an external database for the GermainUX configuration store.

Packaged database

Retain the database deployment settings supplied with the package and verify that:

Persistent storage is configured.
The database credentials are protected.
The database pod has sufficient memory and storage.
Backup and recovery are configured when the environment must be retained.

External database

When using an external configuration database:

Set the packaged MySQL replica count to 0. Older distributions may name this variable: mysqlReplicase=0 Use the exact variable name present in your deploy-germain.sh file.
Configure the external database hostname: germainDbHostname="<database-hostname>"
Update common.properties with the correct connection details.

Example:

germain.config.url=jdbc:mysql://<database-host>:3306/APMCFG?rewriteBatchedStatements=true
germain.config.username=<database-user>
germain.config.password=<database-password>

Before deployment, confirm that:

Kubernetes workloads can resolve and reach the database hostname.
The database and schema exist.
The configured user has the required permissions.
TLS is enabled when required.
Firewalls permit the connection.
Credentials are stored using the approved secret-management mechanism.

Do not retain the example APMCFG password in a shared or production environment.

Configure email

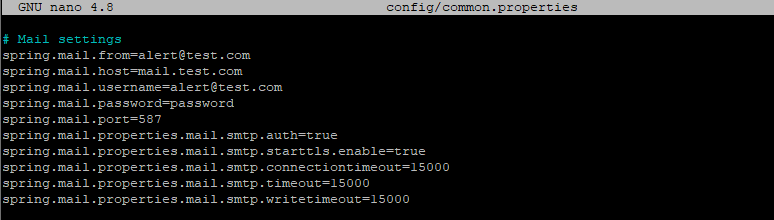

To enable email alerts and reports, update the SMTP settings in the included common.properties file. Configure:

SMTP hostname
SMTP port
Authentication method
Username and password
Sender address
TLS or STARTTLS requirements

Store SMTP credentials as Kubernetes Secrets whenever supported. Email configuration is optional and can be completed after the initial deployment.

Verify Kubernetes access

Confirm that kubectl targets the correct cluster:

kubectl config current-context
kubectl get nodes

Verify that all required nodes report:

Ready

Also confirm the target namespace:

kubectl get namespaces

Create or select the intended namespace according to the deployment package’s instructions. Be especially careful when your workstation can access multiple development and production clusters.

Generate the manifests

Run:

chmod +x deploy-germain.sh
./deploy-germain.sh

The script generates Kubernetes YAML files under a directory named after germainEnvName. Before applying them, review the generated resources for:

Namespace
Image names and tags
Image-pull secrets
Resource requests and limits
Persistent-volume claims
StorageClass

Show all 14

Services and ports
Ingress or LoadBalancer configuration
ConfigMaps and Secrets
Health checks
Replica counts
Node selectors, tolerations, and affinity
Security contexts
Database and messaging settings

Do not assume that generated manifests are appropriate for production without review.

Deploy GermainUX

Apply the generated manifests in the required order.

1 Configuration

kubectl apply -f <germainEnvName>/configmap/

2 Infrastructure

kubectl apply -f <germainEnvName>/infra/

Wait for the infrastructure components to become ready before continuing:

kubectl get pods
kubectl get services
kubectl get persistentvolumeclaims

3 GermainUX components

kubectl apply -f <germainEnvName>/germain/

Monitor the rollout:

kubectl get pods -w

If the manifests use a dedicated namespace, add:

-n <namespace>

to the relevant kubectl commands.

Validate the deployment

Check pods

kubectl get pods

All required pods should eventually report Running or Completed, as appropriate. Investigate pods reporting:

Pending
CrashLoopBackOff
ImagePullBackOff
Error

Check services

kubectl get services

Confirm that the expected ClusterIP, LoadBalancer, or NodePort services exist.

Check persistent storage

kubectl get persistentvolumeclaims

All required claims should report:

Bound

Review a failing pod

kubectl describe pod <pod-name>
kubectl logs <pod-name>

For a pod containing multiple containers:

kubectl logs <pod-name> -c <container-name>

For a container that restarted:

kubectl logs <pod-name> --previous

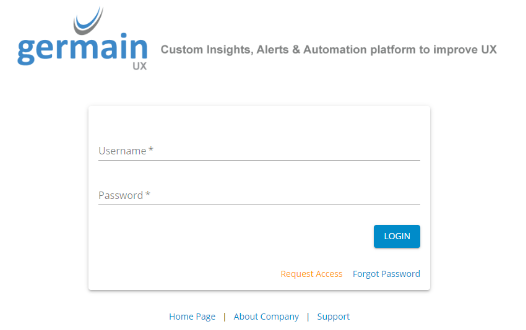

Open the GermainUX Workspace

At the end of a successful deployment, the script displays the URL used to access the GermainUX Workspace. The default path is:

http://<germain-host>:8080/germainapm/workspace/

The actual hostname, protocol, and port depend on the generated Service or Ingress configuration. An initial test deployment may use:

Username: admin
Password: admin

Change the default password immediately after the first successful sign-in. Do not expose an environment using default credentials to an untrusted network.

Production requirements

Before using Kubernetes-hosted GermainUX in production, implement:

Appropriately sized resource requests and limits
Multiple replicas for supported stateless components
Pod anti-affinity and topology-spread constraints
Pod disruption budgets
Persistent storage with suitable performance
Database and datastore backups

Show all 18

TLS for external and internal connections
Kubernetes Secrets or an external secret manager
NetworkPolicies
Restricted service accounts and RBAC
Non-root containers where supported
Image vulnerability scanning
Controlled image registries and immutable tags
Readiness, liveness, and startup probes
Centralized logs and metrics
Capacity and disk-usage alerts
Documented upgrade and rollback procedures
Disaster-recovery testing

The small-cluster configuration described on this page is not sufficient by itself for those requirements.

Troubleshooting

Pods remain pending

Check:

kubectl describe pod <pod-name>
kubectl get nodes
kubectl get persistentvolumeclaims

Common causes include:

Insufficient CPU or memory
Unbound persistent-volume claims
Node selectors that match no node
Missing tolerations
Namespace quotas
Image-pull secret errors

Image cannot be pulled

Verify:

The image name and tag
Registry connectivity
Registry credentials
Image-pull secrets
Service-account configuration
Node access to the registry

GermainUX cannot reach an infrastructure service

Confirm:

The dependent pod is ready.
The Kubernetes Service exists.
The configured service hostname is correct.
The ports match.
NetworkPolicies allow the connection.
Authentication and TLS settings match.
The components are deployed in the expected namespace.

Workspace is inaccessible

Check:

kubectl get services
kubectl get ingress
kubectl describe ingress <ingress-name>

Also verify:

DNS resolution
Load balancer status
Ingress controller health
Firewall rules
TLS certificate configuration
Tomcat and Germain Enterprise logs

Configuration changes are not applied

After changing a source configuration file:

Regenerate or update the relevant manifest

Apply it with kubectl apply

Confirm that the ConfigMap or Secret changed

Restart or roll out the affected deployment if it does not reload configuration dynamically

Verify the effective configuration in the application logs

Source: Kubernetes Setup.

Get Help

Contact GermainUX Support

The Germain Team can help you set this up.

Can't find what you need?

Search all GermainUX docs with Ctrl + K, or use the feedback buttons at the bottom of this page to tell us what is missing.

The content of this document is proprietary to GERMAIN SOFTWARE.

Requirements

Configure the deployment

Configure the database

Troubleshooting

​Architecture

​Requirements

​Kubernetes cluster

​Example lab capacity

​Obtain the deployment package

​Configure the license

​Configure the deployment

​Messaging compatibility

​Environment name

​Configure the database

​Packaged database

​External database

​Configure email

​Verify Kubernetes access

​Generate the manifests

​Deploy GermainUX

​1 Configuration

​2 Infrastructure

​3 GermainUX components

​Validate the deployment

​Check pods

​Check services

​Check persistent storage

​Review a failing pod

​Open the GermainUX Workspace

​Production requirements

​Troubleshooting

​Pods remain pending

​Image cannot be pulled

​GermainUX cannot reach an infrastructure service

​Workspace is inaccessible

​Configuration changes are not applied

​Get Help

Contact GermainUX Support

Can't find what you need?

Architecture

Requirements

Kubernetes cluster

Example lab capacity

Obtain the deployment package

Configure the license

Configure the deployment

Messaging compatibility

Environment name

Configure the database

Packaged database

External database

Configure email

Verify Kubernetes access

Generate the manifests

Deploy GermainUX

1 Configuration

2 Infrastructure

3 GermainUX components

Validate the deployment

Check pods

Check services

Check persistent storage

Review a failing pod

Open the GermainUX Workspace

Production requirements

Troubleshooting

Pods remain pending

Image cannot be pulled

GermainUX cannot reach an infrastructure service

Workspace is inaccessible

Configuration changes are not applied

Get Help
