OpenShift Setup This guide explains how to deploy a small GermainUX environment on an existing Red Hat OpenShift cluster.

Testing environments onlyThe configuration supplied with the GermainUX OpenShift distribution is intended for development, evaluation, and testing. It is not a production reference architecture. Production deployments require environment-specific sizing, high availability, persistent storage, security, monitoring, backup, and disaster-recovery planning.

Requirements

Before starting, confirm that you have:

A supported OpenShift cluster
Access to create resources in the target OpenShift project
The OpenShift CLI (oc)
kubectl, if required by the supplied scripts
A default or explicitly configured StorageClass
Access to the GermainUX container images

Show all 9

A valid GermainUX license
Network connectivity to any external database, SMTP server, identity provider, or datastore
Sufficient permissions to create Routes, Services, ConfigMaps, Secrets, workloads, and persistent-volume claims

Cluster-administrator access may be required if the deployment needs custom Security Context Constraints, cluster-wide resources, or storage configuration.

Example lab capacity

The original GermainUX lab environment used:

Resource	Example value
Minimum node-group size	8
Maximum node-group size	16
Desired node-group size	8
Node volume type	GP3
Minimum CPU	2 cores
Minimum memory	4 GB
Minimum disk	20 GB

These are sample lab values—not production requirements. Confirm whether the CPU, memory, and disk values apply per node in your OpenShift environment.

Production sizing must account for

Number of monitored users and applications
Telemetry volume
Data-retention period
Elasticsearch indexing and query activity
Kafka throughput
Database workload

Show all 9

Replication and high availability
JVM heap requirements
Expected growth

Obtain the GermainUX package

Download the OpenShift deployment package provided for your licensed GermainUX release and extract it:

tar xzf germainux-openshift-<version>-binary.tar.gz
cd germainux-openshift-<version>

Obtain the current package and supported component-version matrix from GermainUX Support. Do not deploy manifests generated for a different GermainUX release without reviewing their compatibility.

Connect to OpenShift

oc login <openshift-api-url>

Confirm the connected cluster and user:

oc whoami
oc whoami --show-server

Create or select a project

Create a dedicated project when appropriate:

oc new-project germainux

Or select an existing project:

oc project <project-name>

Verify the active project before deploying:

oc project

Use separate projects for development, QA, staging, and production unless your organization has approved another isolation model.

Configure the GermainUX license

Locate the license configuration supplied in the extracted package. In packages following the Kubernetes structure, it may be located under:

<EXTRACTED_FILES>/templates/config/license/
germain.apm.monitoringConfig.systemConfig.license.json

Update the encrypted license value with the content supplied by Germain Software. Do not:

Commit the license to a public repository.
Embed it in an unprotected container image.
Include it in logs.
Store an unencrypted copy in a ConfigMap.

Use an OpenShift Secret or your organization’s secret-management solution whenever supported by the deployment package.

Configure the deployment

Open:

deploy-germain.sh

Update the values for the target OpenShift environment. Depending on the package version, the script may include variables such as:

elasticSearchVersion="<approved-version>"
mysqlVersion="<approved-version>"
kibanaVersion="<approved-version>"
zookeeperVersion="<approved-version>"
hazelcastVersion="<approved-version>"
kafkaVersion="<approved-version>"
germainVersion="<germainux-version>"
germainApmBuildRegistry="<container-registry>"
germainEnvName="<environment-name>"

Use only versions approved for the installed GermainUX release.

Messaging compatibility

GermainUX 2024.2 and later uses Kafka. ActiveMQ applies only to earlier releases. For GermainUX 2024.2 or later:

Configure the approved Kafka version.
Do not deploy ActiveMQ unless Germain Support explicitly requires it for a compatibility or upgrade scenario.

Environment name

Set a unique environment name:

germainEnvName="germain-qa"

The environment name may be used to generate resource names, manifest directories, and configuration paths. Avoid changing it after initialization unless you intend to create a separate environment.

Configure image access

If the images are stored in a private registry, create an image-pull secret:

oc create secret docker-registry germainux-registry \
  --docker-server=<registry-host> \
  --docker-username=<registry-user> \
  --docker-password=<registry-password>

Link it to the service account used by the workloads:

oc secrets link <service-account> germainux-registry --for=pull

Do not place registry credentials directly in deployment manifests or shell scripts.

Configure the database

The deployment can use its packaged database resources or an external configuration database.

Packaged database

If using the database supplied with the deployment:

Confirm that persistent storage is available.
Set resource requests and limits.
Protect the database credentials.
Verify the StorageClass.
Configure backups when the environment must be retained.

External database

When using an external configuration database:

Set the packaged MySQL replica count to 0. Older deployment packages may use: mysqlReplicase=0 Use the exact variable name found in your deploy-germain.sh file.
Configure the database host: germainDbHostname="<database-hostname>"
Update common.properties: germain.config.url=jdbc:mysql://<database-host>:3306/APMCFG?rewriteBatchedStatements=true germain.config.username=<database-user> germain.config.password=<database-password>

Confirm that:

OpenShift workloads can resolve the database hostname.
Network policies and firewalls permit the connection.
The schema exists.
The account has the required permissions.
TLS is configured when required.
Credentials are provided through Secrets where supported.

Do not retain example usernames or passwords in a shared or production environment.

Configure email

To enable email alerts and reports, update the SMTP settings in common.properties. Configure:

SMTP hostname and port
Authentication
Username and password
Sender address
TLS or STARTTLS
Any required certificate trust

Store SMTP credentials in an OpenShift Secret whenever supported.

Review OpenShift security requirements

OpenShift commonly runs containers with an automatically assigned, non-root user ID. Before deployment, confirm that every GermainUX image can:

Run without a fixed root user
Write only to approved mounted directories
Use group-writable files and directories where required
Operate without privileged mode
Avoid prohibited Linux capabilities
Use the default restricted Security Context Constraint when possible

Do not grant privileged or overly permissive Security Context Constraints simply to bypass file-permission or image-design problems. If an exception is required, document and restrict it to the specific service account and workload.

Generate the manifests

Run:

chmod +x deploy-germain.sh
./deploy-germain.sh

The script generates Kubernetes-compatible YAML files under the directory identified by germainEnvName. Review the generated resources before applying them:

Project or namespace
Container images and tags
Image-pull secrets
Service accounts
Security contexts
Resource requests and limits

Show all 14

Persistent-volume claims
StorageClass
ConfigMaps and Secrets
Services and ports
Routes
Health probes
Replica counts
Node placement rules

Deploy GermainUX

The generated resources must be applied in this order:

Step	Resource type
1	Configuration
2	Infrastructure
3	GermainUX components

1 1. Apply configuration resources

oc apply -f <germainEnvName>/configmap/

2. Apply infrastructure resources

oc apply -f <germainEnvName>/infra/

Wait for the infrastructure components to become ready:

oc get pods
oc get services
oc get pvc

3. Apply GermainUX resources

oc apply -f <germainEnvName>/germain/

Monitor the deployment:

oc get pods -w

You can use kubectl apply instead of oc apply for standard Kubernetes resources, but oc is recommended when working with OpenShift-specific objects such as Routes.

Configure external access

List existing Routes:

oc get routes

If the package creates a Route, retrieve its hostname:

oc get route <route-name>

If no Route is supplied, create one for the GermainUX service according to your organization’s TLS and ingress standards. Example:

oc expose service <germainux-service-name>

For production, configure TLS and use a trusted certificate. Do not expose a test environment using default credentials to an untrusted network.

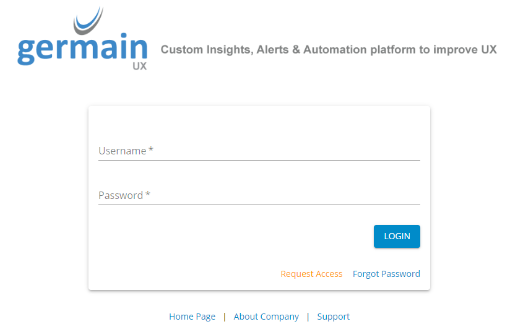

Access the GermainUX Workspace

The default Workspace path is:

http://<germain-host>:8080/germainapm/workspace/

When using an OpenShift Route, access it through the Route hostname and configured protocol:

https://<route-host>/germainapm/workspace/

An initial test deployment may use:

Username: admin
Password: admin

Change the default password immediately after the first successful sign-in.

Validate the deployment

Check pods

oc get pods

Investigate pods in any of these states:

Pending
CrashLoopBackOff
ImagePullBackOff
CreateContainerConfigError
Error

Check services and routes

oc get services
oc get routes

Check persistent storage

oc get pvc

Required claims should report:

Bound

Review pod details and events

oc describe pod <pod-name>
oc get events --sort-by=.lastTimestamp

Review logs

oc logs <pod-name>

For a multi-container pod:

oc logs <pod-name> -c <container-name>

For a container that restarted:

oc logs <pod-name> --previous

Production requirements

Before using GermainUX on OpenShift in production, implement:

Resource requests and limits
Multiple replicas for supported stateless components
Pod anti-affinity and topology-spread constraints
Pod disruption budgets
Suitable persistent storage
Database and datastore backups

Show all 17

TLS for external and internal connections
OpenShift Secrets or an external secret manager
NetworkPolicies
Restricted service accounts and RBAC
Restricted Security Context Constraints
Image vulnerability scanning
Approved registries and immutable image tags
Readiness, liveness, and startup probes
Centralized logs and metrics
Capacity and disk-usage alerts
Upgrade, rollback, and disaster-recovery procedures

Troubleshooting

Pod is rejected by OpenShift security

Review:

oc describe pod <pod-name>

Look for errors related to:

Security Context Constraints
Fixed user IDs
Privileged containers
Disallowed capabilities
Writable-directory permissions
HostPath volumes

Correct the image or workload security context whenever possible. Grant a broader SCC only after security review.

Pod cannot pull its image

Verify:

Image registry and repository
Image tag
Image-pull secret
Service-account secret linkage
Registry certificates
Network access from cluster nodes

Persistent-volume claim remains pending

Check:

oc describe pvc <pvc-name>
oc get storageclass

Confirm that the requested access mode and storage size are supported by the selected StorageClass.

Route is unavailable

Check:

oc describe route <route-name>
oc get endpoints <service-name>

Verify that:

The Route points to the correct Service.
The Service has ready endpoints.
The target port is correct.
The router is healthy.
DNS resolves the Route hostname.
TLS settings are valid.

GermainUX cannot reach an external database

Confirm:

DNS resolution from the project
Egress NetworkPolicies
External firewall rules
Database listener availability
Credentials and permissions
TLS and certificate trust
JDBC connection configuration

Source: OpenShift Setup.

Get Help

Contact GermainUX Support

The GermainUX team helps you get up and running faster, empower your team, turn data into actionable insights, and optimize performance to deliver measurable business outcomes.

Can't find what you need?

Search all GermainUX docs with Ctrl + K, or use the feedback buttons at the bottom of this page to tell us what is missing.

The content of this document is proprietary to GERMAIN SOFTWARE.

Configure the deployment

Configure the database

Production requirements

Troubleshooting

​Requirements

​Example lab capacity

​Production sizing must account for

​Obtain the GermainUX package

​Connect to OpenShift

​Create or select a project

​Configure the GermainUX license

​Configure the deployment

​Messaging compatibility

​Environment name

​Configure image access

​Configure the database

​Packaged database

​External database

​Configure email

​Review OpenShift security requirements

​Generate the manifests

​Deploy GermainUX

​1 1. Apply configuration resources

​2. Apply infrastructure resources

​3. Apply GermainUX resources

​Configure external access

​Access the GermainUX Workspace

​Validate the deployment

​Check pods

​Check services and routes

​Check persistent storage

​Review pod details and events

​Review logs

​Production requirements

​Troubleshooting

​Pod is rejected by OpenShift security

​Pod cannot pull its image

​Persistent-volume claim remains pending

​Route is unavailable

​GermainUX cannot reach an external database

​Get Help

Contact GermainUX Support

Can't find what you need?

Requirements

Example lab capacity

Production sizing must account for

Obtain the GermainUX package

Connect to OpenShift

Create or select a project

Configure the GermainUX license

Configure the deployment

Messaging compatibility

Environment name

Configure image access

Configure the database

Packaged database

External database

Configure email

Review OpenShift security requirements

Generate the manifests

Deploy GermainUX

1 1. Apply configuration resources

2. Apply infrastructure resources

3. Apply GermainUX resources

Configure external access

Access the GermainUX Workspace

Validate the deployment

Check pods

Check services and routes

Check persistent storage

Review pod details and events

Review logs

Production requirements

Troubleshooting

Pod is rejected by OpenShift security

Pod cannot pull its image

Persistent-volume claim remains pending

Route is unavailable

GermainUX cannot reach an external database

Get Help
