Overview

GermainUX monitors WebSocket communication between a user’s browser and a server. It captures connection activity, errors, message size, and connection duration, helping teams identify real-time communication problems affecting users.

WebSocket Monitoring is enabled by default for each User Monitoring Profile as part of Network Request Monitoring.

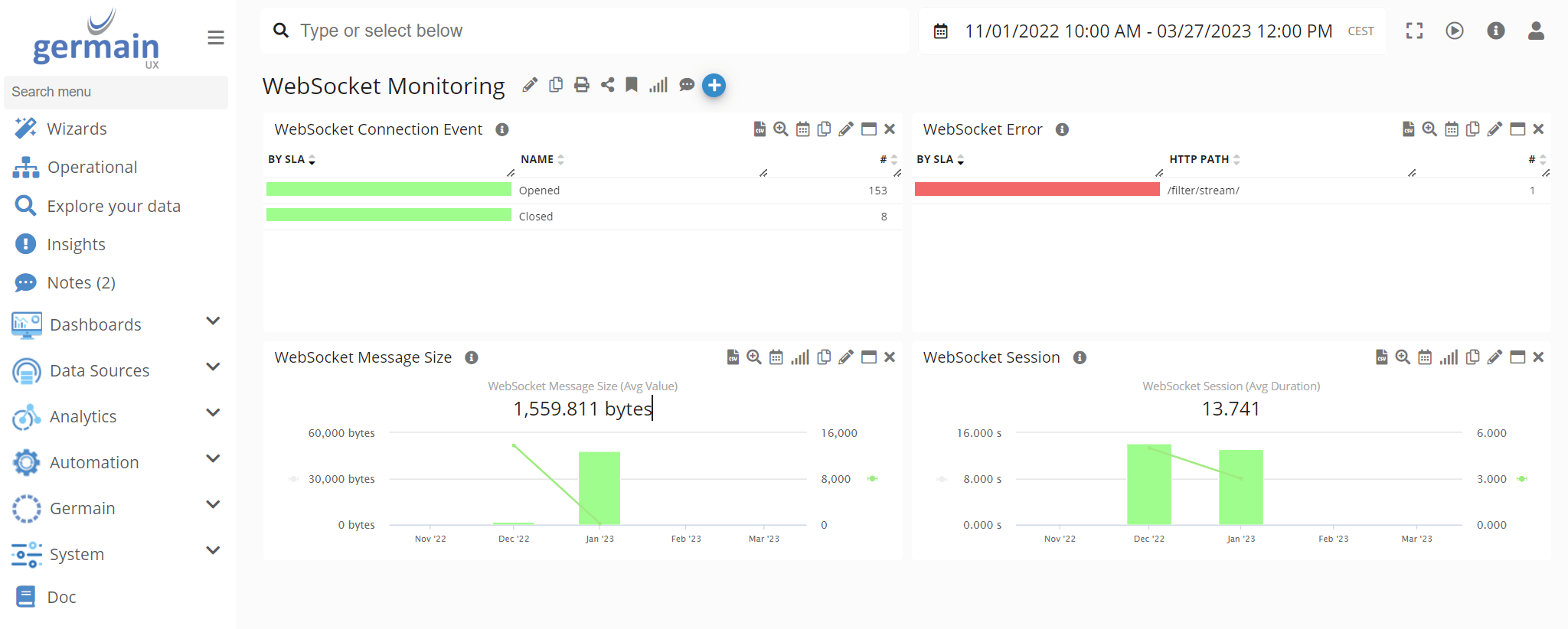

WebSocket Monitoring on Aggregated Dashboard

Monitoring components

Component	Role
GermainUX RUM JS	Continuously monitors WebSocket activity when the GermainUX monitoring script can be deployed in the application.
GermainUX RUM Extension	Provides WebSocket monitoring when RUM JS cannot be deployed directly or access to the complete browser-page context requires an extension.
GermainUX JS Profiler	Provides deeper JavaScript, browser, error, and network evidence when a WebSocket problem requires technical investigation.

Collected data

GermainUX collects:

Data	Description
Connection opened	A WebSocket connection was established.
Connection closed	A WebSocket connection ended.
Error	A WebSocket error occurred.
Message size	The size of messages transferred through the connection.
Session duration	The duration of the WebSocket connection.

WebSocket Monitoring captures operational and performance information. Message content is not listed as part of the standard collected data.

Capabilities

GermainUX helps teams:

Detect WebSocket connection failures affecting real users.
Identify connections that open, close, or fail unexpectedly.
Measure WebSocket connection duration.
Analyze transferred message sizes.
Determine which users, sessions, pages, and workflows are affected.
Identify recurring errors and unstable connection patterns.
Correlate WebSocket activity with user interactions, JavaScript errors, page activity, and Session Replay.
Use the JS Profiler to investigate the JavaScript and browser activity surrounding a connection problem.

Common use cases

WebSocket Monitoring can support applications that use persistent browser connections for:

Chat and messaging.
Contact-center and CTI updates.
Real-time notifications.
Live dashboards.
Collaboration features.
Streaming status updates.

Show all 9

Order, delivery, or transaction status.
Financial or operational data feeds.
Real-time application synchronization.

Business benefits

WebSocket Monitoring helps organizations:

Detect real-time communication failures before they affect more users.
Identify unstable connections and unexpected disconnections.
Determine whether missing or delayed updates are associated with the browser connection.
Measure the users and business workflows affected by an outage.
Reduce the time required to reproduce intermittent connection problems.
Correlate a WebSocket failure with the user’s exact session and activity.
Prioritize issues according to frequency and actual user or business impact.
Validate whether an application, network, or server correction resolved the problem.

Continuous monitoring

GermainUX RUM JS or the GermainUX RUM Extension continuously monitors WebSocket activity during real user sessions. Use:

RUM JS when the GermainUX monitoring script can be deployed directly in the application.
RUM Extension when direct script deployment is unavailable or the application’s security architecture prevents access to the required browser context.

Each collected event is associated with the available application, page, browser, user, and session context.

Technical investigation with JS Profiler

When continuous monitoring identifies a WebSocket error or unstable connection, the GermainUX JS Profiler can provide deeper evidence, including:

JavaScript function execution.
Function timing.
JavaScript errors and stack traces.
Browser events and user interactions.
Related network and resource activity.
Long-running browser tasks.
DOM activity.
Application, page, workflow, and session context.

The JS Profiler complements continuous WebSocket Monitoring. It provides surrounding JavaScript and browser evidence but does not replace server-side WebSocket logs or diagnostics.

Analytics

GermainUX can analyze WebSocket activity through KPIs, measures, pivots, trends, drill-through views, and session context.

Analysis area	Examples
Availability	Opened, closed, or failed connections
Reliability	Errors, unexpected closures, and recurring failures
Duration	WebSocket connection or session duration
Traffic	Message size
Impact	Affected users, sessions, pages, and workflows
Environment	Application, release, browser, operating system, and device
User context	Clicks, navigation, page activity, and Session Replay
Technical context	JavaScript errors, long tasks, and related network activity

GermainUX users can create watches to receive notifications when collected WebSocket insights meet conditions of interest.

Configuration

No configuration is required to use the default behavior.

Enable or disable with Network Request Monitoring

WebSocket Monitoring is enabled through Network Request Monitoring. To change its status:

Go to Germain Workspace > Analytics > UX Monitoring Profiles

Select the applicable profile

Select or clear Network Requests Monitoring

Save the profile

Disabling Network Request Monitoring also disables the WebSocket Monitoring controlled by that profile.

Configure WebSocket monitoring independently

Use settings.plugins.network.monitorWebSocket when WebSocket collection must be enabled or disabled independently in the initialization script. Enable WebSocket Monitoring:

const settings = germainApm.getDefaultSettings();

settings.plugins.network.monitorWebSocket = true;

germainApm.start(settings);

Disable WebSocket Monitoring:

const settings = germainApm.getDefaultSettings();

settings.plugins.network.monitorWebSocket = false;

germainApm.start(settings);

The default value is true.

Limitations

Browser-side WebSocket Monitoring provides the user-facing connection context. A complete technical investigation may also require:

WebSocket server logs.
Reverse-proxy or load-balancer logs.
Network and firewall information.
Authentication-service evidence.
Back-end application monitoring.
Server-side error and transaction data.

GermainUX can correlate the browser evidence with other monitored data when common application, session, user, or transaction identifiers are available.

Privacy and security

Although standard monitoring focuses on connection events, errors, duration, and message size, the surrounding page, URL, error, and session context may contain sensitive information. Before deployment:

Confirm which applications and WebSocket endpoints should be monitored.
Avoid exposing authentication tokens or secrets in URLs.
Apply masking and exclusion requirements to Session Replay.
Restrict access to detailed user and technical evidence.
Apply appropriate retention and compliance requirements.
Review custom processing carefully if it accesses WebSocket message content.

Recommended investigation workflow

Use RUM JS or the RUM Extension to identify a WebSocket error or unexpected closure.
Determine the affected users, sessions, pages, workflows, and browsers.
Review connection events, duration, errors, and message sizes.
Examine the user’s activity through Session Replay when available.
Correlate the problem with JavaScript errors, long tasks, and other network activity.
Enable the JS Profiler for a controlled scope when deeper browser or JavaScript evidence is required.
Review related server, proxy, authentication, and network evidence.
Identify and correct the responsible client, server, or network condition.
Validate the correction through continuous WebSocket Monitoring.

Deployment and configuration

Review Browser Monitoring.
Review the Browser Monitoring Deployment Overview.
Deploy GermainUX RUM JS when the monitoring script can be added to the application.
Deploy the GermainUX RUM Extension when direct script deployment is unavailable or access to the complete browser-page context requires an extension.
Deploy the GermainUX JS Profiler for deeper JavaScript, browser, and network diagnostics.
Review Network Request Monitoring.

Show all 10

Review the available Browser Monitoring configuration.
Review JavaScript Console and Error Monitoring.
Review the KPIs for User Monitoring and Replay.
Review the available Browser Monitoring KPIs.

Get Help

Contact GermainUX Support

The Germain Team can help you set this up.

Can't find what you need?

Search all GermainUX docs with Ctrl + K, or use the feedback buttons at the bottom of this page to tell us what is missing.
