SSH execution - GermainUX Docs

ComponentsEngine

Availability2014.2 or later

GermainUX can execute commands and scripts on remote servers through SSH. This capability supports automated reporting, data processing, system maintenance, transaction execution, remediation, and other operational workflows.

Configure an SSH Action

Set up remote commands

Connection Settings

Host, credentials and access

SLA Settings

Trigger actions on conditions

Security Recommendations

Hardening tips and support

SSH Actions can run:

	Mode
1	Manually
2	On a configurable schedule
3	When an SLA condition is met

Configure an SSH Action

You can create an SSH Action through the wizard or from the Automation screen.

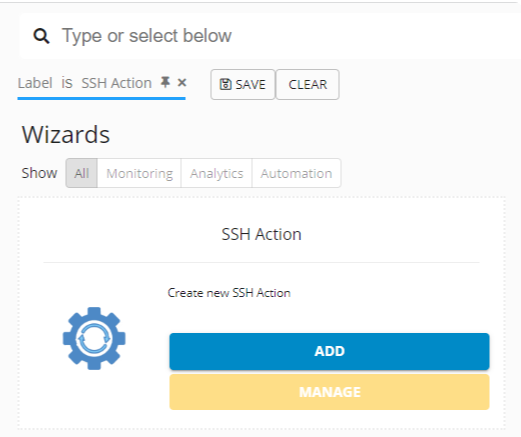

Using the Wizard

Go to GermainUX Workspace → Left Menu → Settings → Wizards -> SSH.

Using the Automation Screen

Go to GermainUX Workspace → Left Menu → Settings → Automation -> SSH.
Click Add New Configuration to open the SSH Action wizard.

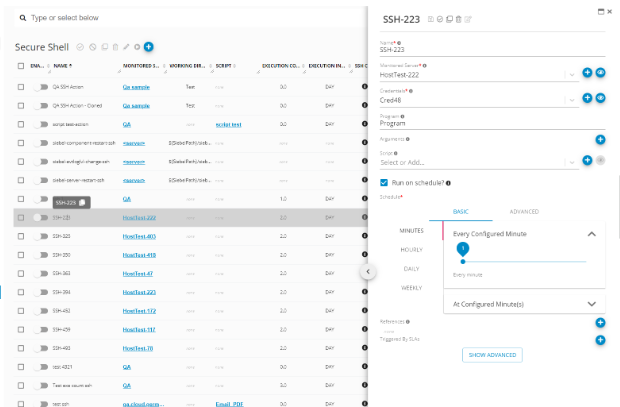

SSH Configuration Screen - GermainUX
Complete the following steps:
Click Finish.
Verify the execution results.

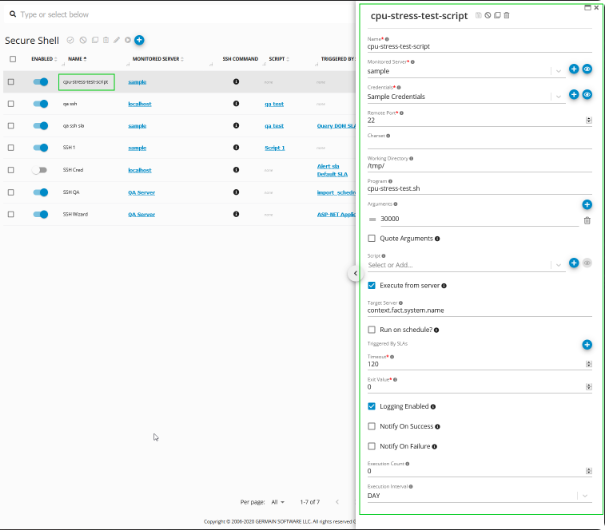

Verify the execution results - GermainUX

Step	Label
1	Action
2	Connection
3	Command
4	Schedule
5	SLA
6	Summary

Action Settings

Field	Description
Name	Unique, descriptive name used to identify the SSH Action.
Notify on Success	Generates a notification when the command executes successfully.
Notify on Failure	Generates a notification when the command fails.
Logging Enabled	Records executions under the Germain Action Log KPI.
Execute via Engine	Runs the SSH connection from the Engine associated with the target server. When disabled, the connection originates from the Action Service.
Target Server	Expression used to determine the server from which the SSH connection should originate. The default is `context.fact.system.name`.

Connection Settings

Field	Description
Server	Target server on which the command will execute. Select an existing configured server.
Credentials	Configured credentials used to establish the SSH connection.
Remote Port	Port on which the target server accepts SSH connections. The default is `22`.

Command Settings

Field	Description
Working Directory	Starting directory from which the command or script executes.
Program	Command, executable, or script filename to run.
Arguments	Arguments passed to the command. Add each argument separately.
Timeout	Maximum time allowed for the command to complete.
Exit Value	Exit code that indicates successful execution. This is typically `0`.
Charset	Character encoding used to process the command and its output. Configure this only when an alternative charset is required.
Quote Arguments	Automatically quotes arguments containing spaces or quotation marks.

Schedule Settings

Field	Description
Run on Schedule	Enables automatic execution according to a configured schedule.
Execution Count	Limits how many times the action can execute during its configured interval.

If the action should run only when an SLA is breached, leave Run on Schedule disabled.

SLA Settings

Use the SLA step to:

Associate the SSH Action with an existing SLA.
Click + to create an SLA for a KPI.
Leave the SLA empty when the action should run only manually or on a schedule.

When the selected SLA condition is met, GermainUX executes the SSH Action automatically.

Verify the Results

After saving or running the action:

Step	Check
1	Review its execution status.
2	Confirm that the returned exit value matches the expected value.
3	Review the command output and error output.
4	Check the Germain Action Log KPI when logging is enabled.
5	Confirm that the intended change occurred on the target server.

Security Recommendations

Use a dedicated SSH account with the minimum required permissions.
Prefer key-based authentication.
Store credentials in GermainUX credential configurations.
Never embed passwords or private keys in commands or arguments.
Restrict the commands that the SSH account can execute.
Validate dynamic arguments before passing them to a remote command.
Configure execution limits and timeouts.
Test actions in a non-production environment before enabling automatic execution.

Get Help

Contact GermainUX Support

The Germain Team can help you set this up.

Can't find what you need?

Search all GermainUX docs with Ctrl + K, or use the feedback buttons at the bottom of this page to tell us what is missing.
