Overview

GermainUX alerts can automatically create incidents in ServiceNow, helping teams route detected issues into their existing incident-management workflows.

​
Integration Overview

GermainUX integrates with ServiceNow through HTTP Actions and the ServiceNow Table API. The API supports creating, reading, updating, and deleting records in ServiceNow tables. For example, when a GermainUX SLA is breached, an HTTP Action can send a POST request that creates a ServiceNow incident containing details about the affected KPI, system, and threshold.

​
Example ServiceNow API Request

The following request creates an incident through the ServiceNow Table API:
Do not include production credentials directly in scripts or configuration content. Store them in an approved credential configuration and reference them from the action.

​
Automatically Create ServiceNow Incidents

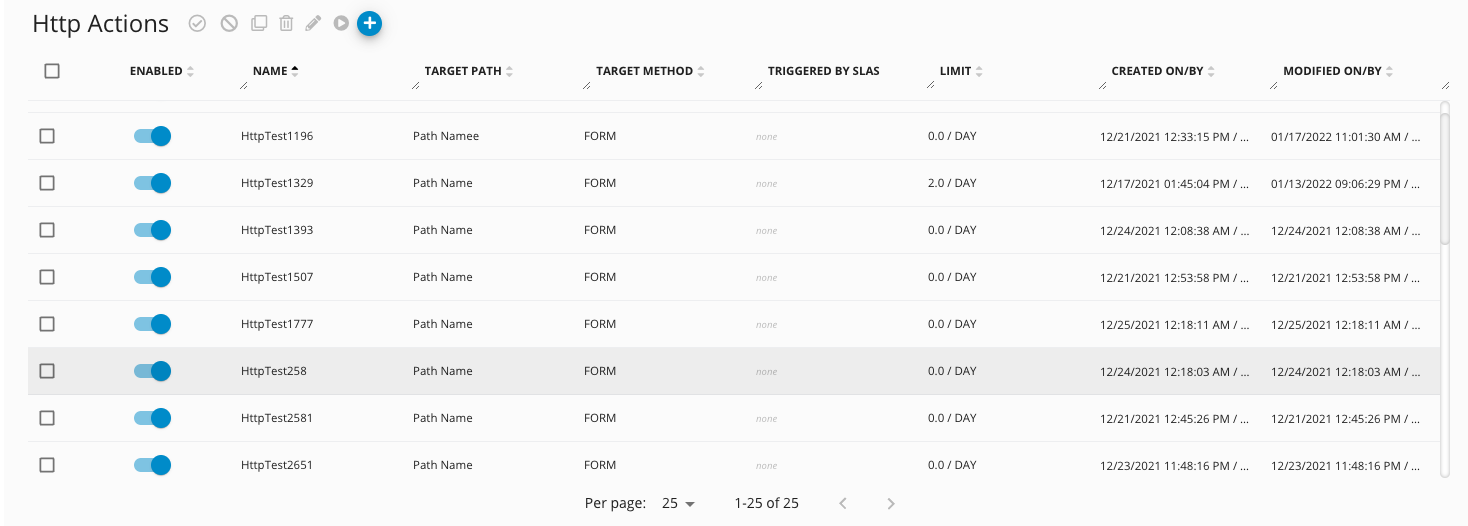

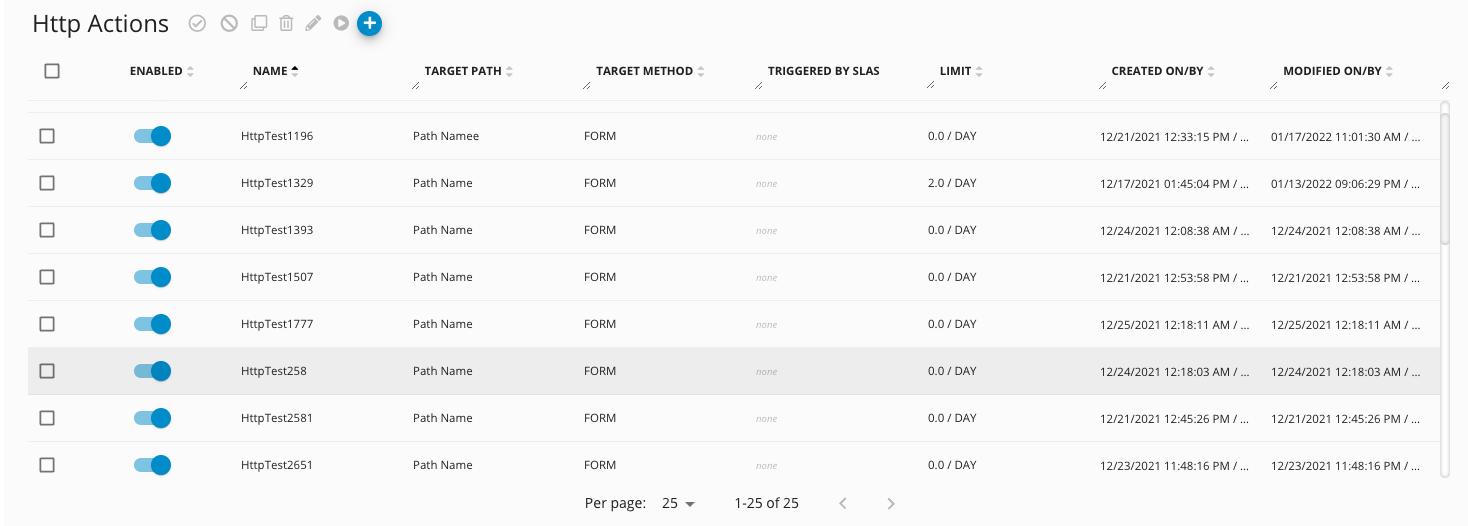

Go to GermainUX Workspace > Automation > HTTP. This screen displays the available HTTP Actions and identifies those associated with SLAs. Select an existing action to edit it, or click + to open the HTTP Action wizard.

​

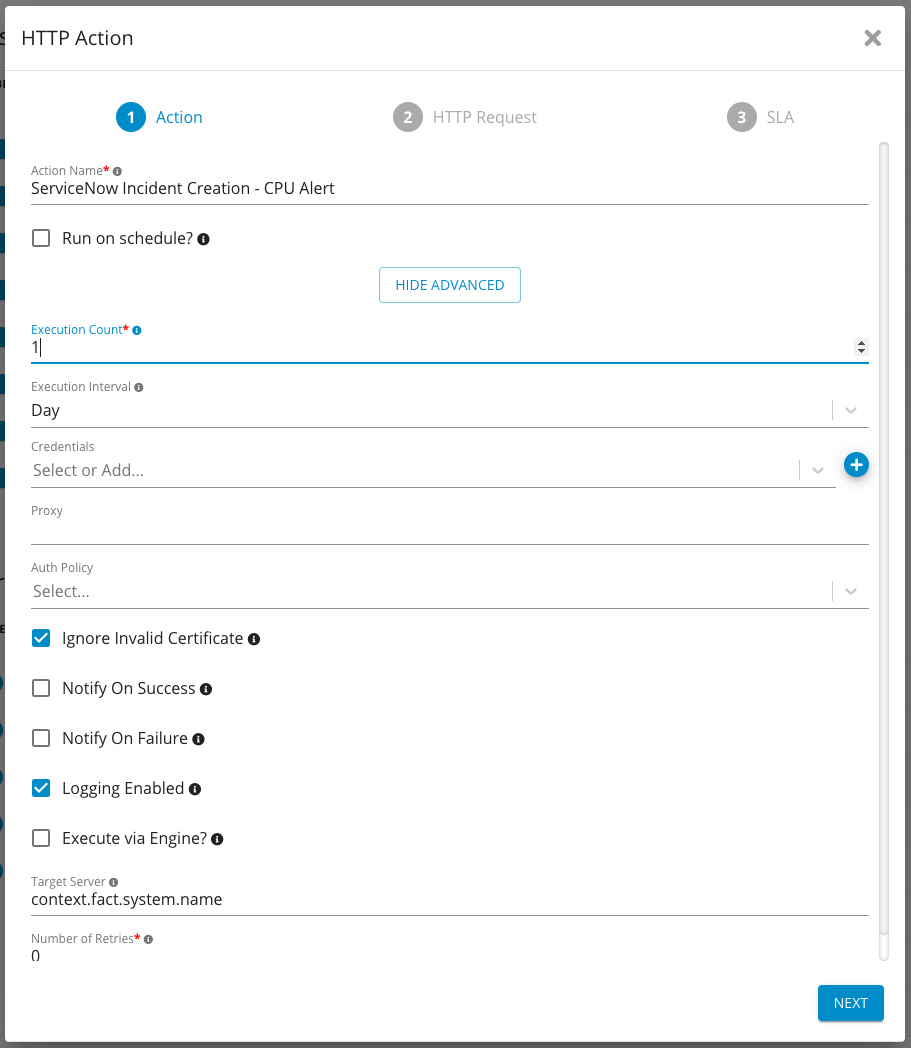

1 Step 1: Configure the Action

Enter:
Click Next.

​

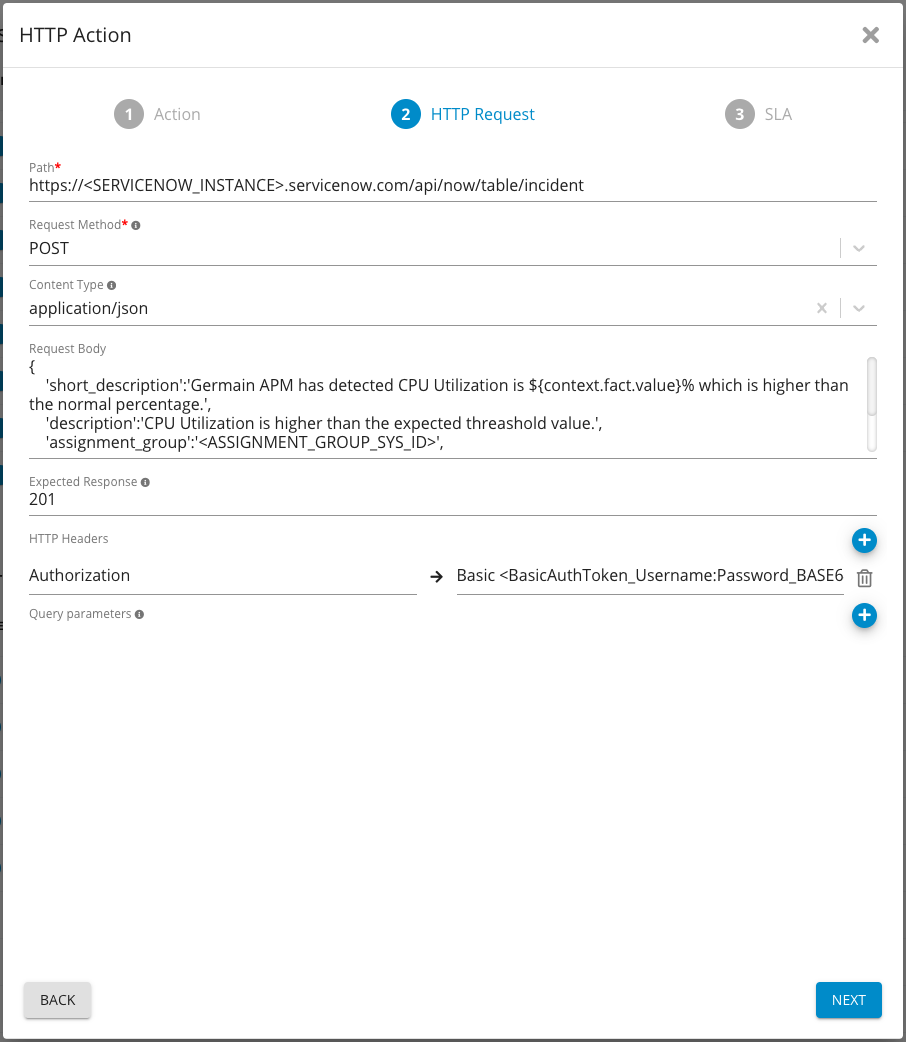

2 Step 2: Configure the HTTP Request

Use the following request body:

​
3 Step 3: Select the Trigger

Select the CPU Usage SLA that should trigger the HTTP Action. When the SLA is breached, GermainUX will submit the request and create a ServiceNow incident. Click Finish to save the configuration.
  • Use a dedicated ServiceNow integration account with the minimum required permissions.
  • Store authentication details in GermainUX credential references.
  • Apply an execution limit or quiet period to prevent duplicate incidents.
  • Include the affected system, KPI, SLA, current value, and Analysis Dashboard link in the incident.
  • Test the integration against a non-production ServiceNow instance before enabling it in production.
  • Verify that ServiceNow returns HTTP status 201 after successfully creating an incident.
The same approach can be extended to update, resolve, or enrich existing ServiceNow incidents.

​
