Scheduling of an Action - GermainUX Docs

ComponentsEngine

Availability2014.1 or later

GermainUX scheduling overview

Recurring and timed actions

Configure a Schedule

Visual scheduler or CRON

CRON Expression Examples

Sample recurring schedules

GermainUX scheduling overview

GermainUX can execute actions and tasks automatically on a recurring schedule or at a specific time. Supported actions include:

Click and synthetic-user scenarios
HTTP actions
Local programs
Scripts
SQL queries
SSH commands
WMI commands

Configure a Schedule

You can define a schedule using the visual scheduler in the GermainUX Workspace or an advanced CRON expression.

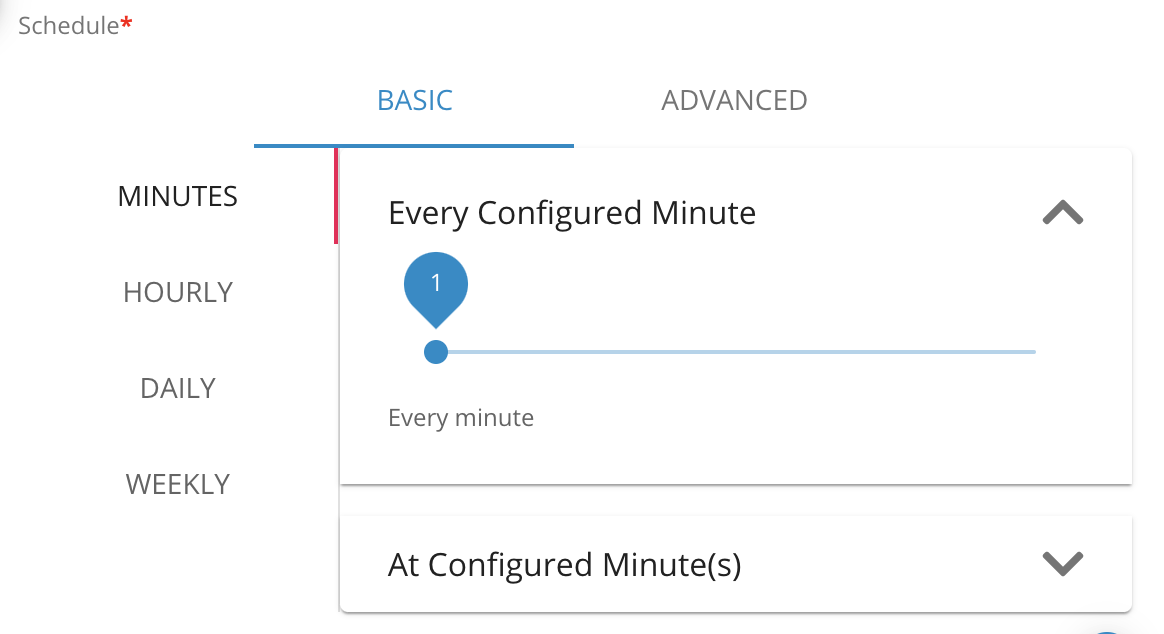

Using the Visual Scheduler

Open the action you want to schedule in the GermainUX Workspace.
Enable Run on Schedule.
Use the scheduler to configure the execution frequency.

The visual scheduler supports common schedules, including:

Every minute
Hourly
Daily
Weekly
At specific times

Save the action after configuring its schedule.

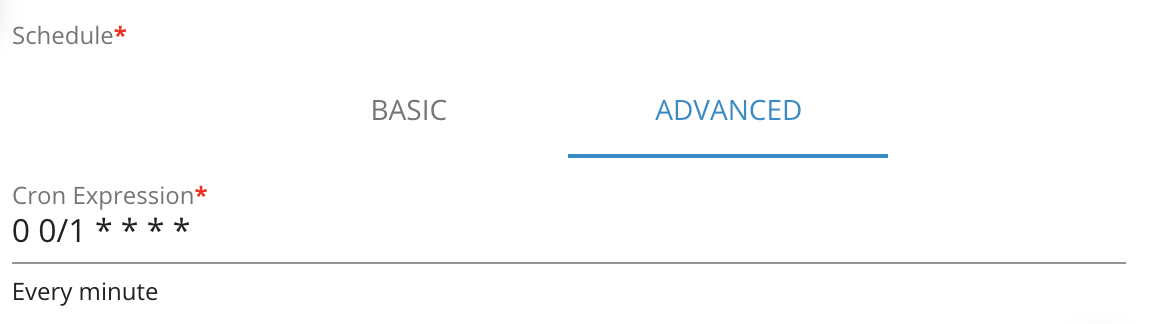

Using a CRON Expression

For more advanced scheduling requirements, select the advanced scheduling option and enter a valid Quartz CRON expression. A Quartz CRON expression generally uses the following fields:

Seconds Minutes Hours Day-of-Month Month Day-of-Week [Year]

Verify the applicable time zone before enabling a production schedule.

CRON Expression Examples

CRON expression	Execution schedule
`0 0 12 * * ?`	Every day at 12:00 p.m.
`0 15 10 ? * *`	Every day at 10:15 a.m.
`0 15 10 * * ?`	Every day at 10:15 a.m.
`0 15 10 * * ? *`	Every day at 10:15 a.m.
`0 15 10 * * ? 2005`	Every day at 10:15 a.m. during 2005.
`0 * 14 * * ?`	Every minute from 2:00 p.m. through 2:59 p.m., every day.
`0 0/5 14 * * ?`	Every five minutes from 2:00 p.m. through 2:55 p.m., every day.
`0 0/5 14,18 * * ?`	Every five minutes from 2:00–2:55 p.m. and 6:00–6:55 p.m., every day.
`0 0-5 14 * * ?`	Every minute from 2:00 p.m. through 2:05 p.m., every day.
`0 10,44 14 ? 3 WED`	At 2:10 p.m. and 2:44 p.m. every Wednesday in March.
`0 15 10 ? * MON-FRI`	At 10:15 a.m. every Monday through Friday.
`0 15 10 15 * ?`	At 10:15 a.m. on the 15th day of every month.
`0 15 10 L * ?`	At 10:15 a.m. on the last day of every month.
`0 15 10 ? * 6L`	At 10:15 a.m. on the last Friday of every month.
`0 15 10 ? * 6L 2002-2005`	At 10:15 a.m. on the last Friday of every month from 2002 through 2005.
`0 15 10 ? * 6#3`	At 10:15 a.m. on the third Friday of every month.
`0 0 12 1/5 * ?`	At 12:00 p.m. every five days, starting on the first day of each month.
`0 11 11 11 11 ?`	Every November 11 at 11:11 a.m.

Before activating a scheduled action, validate the expression and confirm that its execution frequency will not create overlapping runs or excessive load.

Get Help

Contact GermainUX Support

The Germain Team can help you set this up.

Can't find what you need?

Search all GermainUX docs with Ctrl + K, or use the feedback buttons at the bottom of this page to tell us what is missing.
